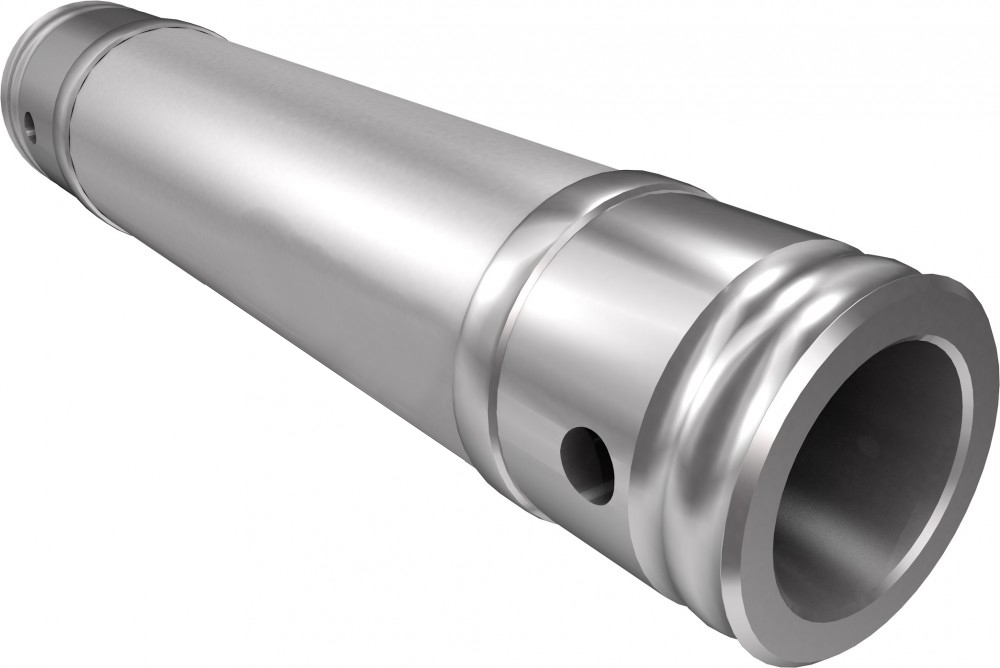

1.64 Foot – .5M F31 Single Tube Truss Segment | 2mm Wall

XT-S164

The ProX XT-S164 Single Tube Segment | 2mm Wall is one of the most trusted staging support systems in the live entertainment industry and is engineered and manufactured to the highest standards of safety and performance.  We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F31 single tubes utilize a popular conical connector system, which easily mates with most other brands of truss of the same size and connector type, and is available in a variety of lengths to suit your designs.  Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

ProX XT series trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX offers a wide variety of corners, base plates, connectors and accessories that allow limitless design configurations to suit your needs.  Always consult an engineer for complex designs!

• Manufactured to Exacting Specifications in our Own Factory!
• Actual Length:  1.64ft (.5m) Single Tube Truss Segment
• Includes One Connecting Hardware Set
• 2″ (50mm) Outer Diameter Tubing
• Material: EN-AWT6 6082 Aluminum
• 0.079″ (2mm) Wall Thickness
• TUV Certified Aluminium Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry-standard dimensions to be compatible to connect to, and work with, many other manufacturers F34 trussing products with conical connectors.

Images shown are for illustration only and due to our constant improvement policy, the product you recieve may differ slightly!

Standard Size Truss Configurations with Conical Connections
